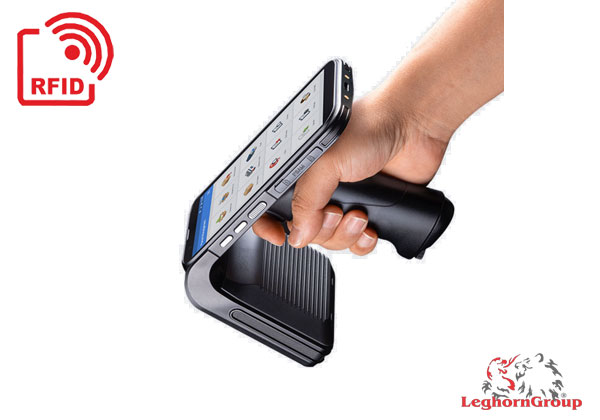

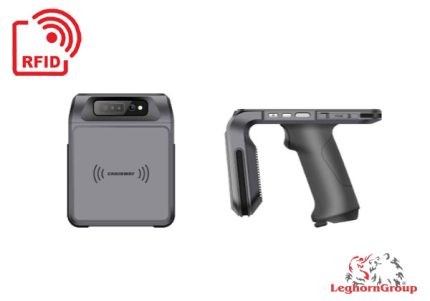

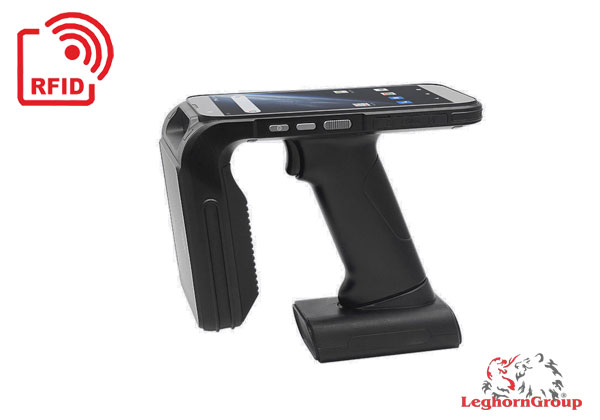

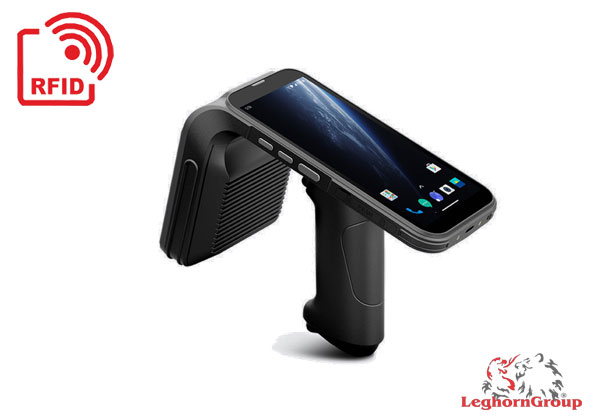

Lettore RFID UHF all-in-one ad alte prestazioni – LGH-C5

Descrizione

Lettore RFID UHF all-in-one ad alte prestazioni. Integra un modulo UHF basato su Impinj E710, che supporta Impinj Gen2X, offrendo prestazioni UHF leader del settore.

LGH-C5 adotta un design integrato, offre prestazioni UHF più stabili e una maggiore durata.

La configurazione di sistema avanzata del computer mobile include la piattaforma Android 11/13, un processore octa-core, una memoria interna di grandi dimensioni opzionale e una batteria rimovibile ad alta capacità. Supporta inoltre la scansione 2D, NFC, il riconoscimento delle impronte digitali e altre funzioni, che ne consentono l’utilizzo in numerosi settori come quello bancario, della sicurezza pubblica, del magazzinaggio, della vendita al dettaglio, della logistica e altri ancora.



DATI TECNICI

Performance

• CPU Octa-core, 2.3GHz
• RAM+ROM 3GB + 32GB / 4GB +64GB (Optional)
• Expansion Supports up to 256GB Micro SD (TF) card
• Operating System Android 11/13

Communication

• WLAN 802.11 a / b / g / n / ac, 2.4G / 5G dual-band
• WWAN
• 2G: GSM (B2 / B3 / B5 / B8)
• 3G: WCDMA (B1 / B2 / B4 / B5 / B8)
• CDMA2000 ECDO: BC0
• 4G: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B17 / B20 / B28A / B28B / B38 / B39 / B40 / B41
• Bluetooth 5.0
• Vo-LTE Support
• GNSS GPS / AGPS, GLONASS, BeiDou, Galileo

Physical Characteristics

• Dimensions 177.0 x 80.2 x 14.8mm / 6.97 x 3.15 x 0.58in
• Weight 626g / 22.08oz. (device with battery)
• Display 5-inch (Fingerprint), 1280 x 720 / 6-inch, 2160 x 1080
• Touch Panel Multi-touch panel, gloves and wet hands supported; Corning Gorilla Glass
• Battery 6700mAh / 13400mAh removable pistol battery
• Built in 100mAh backup battery, supporting battery hot swap
• Card slot 2 slots for PSAM card (optional); 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
• Interfaces USB 2.0 Type-C, OTG, Type-C headphones supported
• Audio 1 microphone; 1 speakers; 1 receiver
• Notification Sound, LED indicator, vibrator
• Keypad 1 power key, 2 scan keys, 1 user-defined key, 2 volume keys (+/-)
• Sensor Gravity sensor, proximity sensor, light sensor, geomagnetic sensor (optional), gyroscope (optional)

Developing Environment

• SDK Software Development Kit
• Language Java
• Tool Eclipse / Android Studio

User Environment

• Operating Temp.-20 °C to 50 °C / 4 °F to 122 °F
• Storage Temp.-40 °C to 70 °C / -40 °F to 158 °F
• Humidity 5%RH to 95%RH (non condensing)
• Drop Specification Multiple 1.5m / 4.9ft. drops to the concrete across the operating temperature range
• Tumble Specification 1000 x 0.5m / 1.64 ft. falls at room temperature
• Sealing IP65 per IEC sealing specifications
• ESD ±15KV air discharge, ±8KV conductive discharge

Data Collection

• Camera Front camera 5MP Rear camera Rear 13MP Autofocus with flash

UHF

• Impinj Gen2X Supported
• Protocol EPCglobal Gen 2 (ISO18000-6C)
• Frequency 865-868MHz / 920-925MHz / 902-928MHz
• Engine CM710-1 module based on Impinj E710
• Output power 1W (30dBm, +5dBm to +30dBm adjustable) 2W Optional (33dBm, for Latin America, etc.)
• Antenna Circular polarization; 5dBi / 4dBi (NFC supported)
• Max Read Range
  • 5dBi
    • 30m (Impinj MR6 tag, size 70 x 15mm)
    • 32m (Impinj M750 tag, size 70 x 15mm)
    • 33m (Alien H3 Anti-Metal tag, size 130 x 42mm)
  • 4dBi
    • 22m (Impinj MR6 tag, size 70 x 15mm)
    • 26m (Impinj M750 tag, size 70 x 15mm)
    • 27m (Alien H3 Anti-Metal tag, size 130 x 42mm)
• Fastest Read Rate 1300+ tags / sec (Circular Polarized)

* Ranges and rates depend on tags and environment

Fingerprint (Optional)

• Sensor TLK1NC02
• Sensing Area (mm) 14.0 X 22.0
• Resolution (dpi) 508dpi, 256 greylevel
• Certifications FIPS 201, FBI
• Format Extraction ISO19794, WSQ, ANSI 378, JPEG2000
• Fake Finger Detection Support by SDK
• Security AES, DES key encryption of the host communication channel

NFC (Optional)

• Frequency 13.56MHz
• Protocol ISO14443A / B, ISO15693, NFC-IP1, NFC-IP2 etc.
• Chips M1 card (S50, S70), CPU card, NFC tags etc.
• Range 2-4cm

Barcode Scanning (Optional)

• 2D Scanner CM60; Zebra: SE4710
• 1D Symbologies UPC / EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS etc.
• 2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX) etc.

Accessories

USB Cable, Adapter, Charging Cradle for device (optional), Charging Cradle for Pistol Battery (optional)
