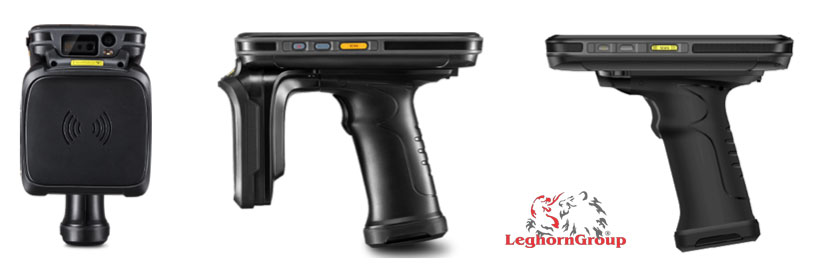

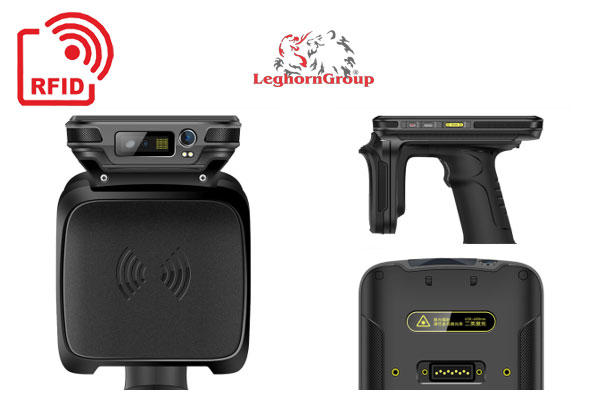

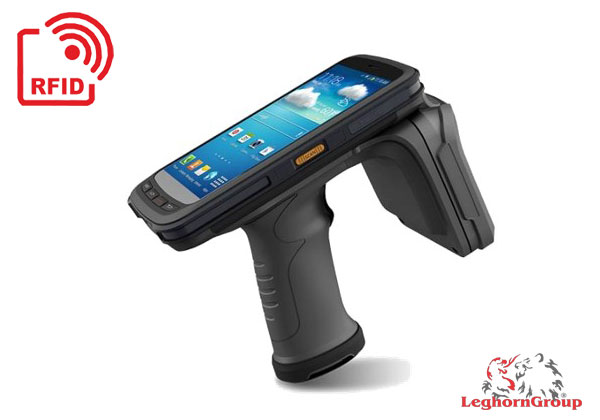

Lettore RFID UHF basato su Android – LGHC72

Descrizione

LGHC72 è un robusto lettore RFID UHF basato su Android che vanta la migliore capacità RFID UHF della categoria. Dotato di Impinj E710 integrato (supporta Impinj Gen2X), consente una distanza di lettura superiore a 30 m e prestazioni ottime. Il lettore RFID è dotato di scansione di codici a barre opzionale, processore octa-core e batteria ad alta potenza da 8000 mAh per soddisfare perfettamente le esigenze di applicazioni intensive, in particolare nella gestione patrimoniale, nella vendita al dettaglio, nell’immagazzinaggio, nell’inventario di abbigliamento, nei pedaggi autostradali, nella gestione di flotte, nella finanza, ecc.



DATI TECNICI

Performance

• Operating System Android 11/13; GMS, 90-day security updates, ZeroTouch, FOTA, Soti MobiControl, SafeUEM supported
• CPU Octa-core 2.3 GHz
• RAM+ROM 3GB + 32GB / 4GB + 64GB (optional)
• Expansion Supports up to 256GB Micro SD (TF) card

Communication

• WLAN IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
• Bluetooth Bluetooth 5.0
• GNSS GPS/AGPS, GLONASS, BeiDou; internal antenna
• WWAN
  • 2G: GSM850/GSM900/DCS1800/PCS1900
  • 3G: WCDMA: B1/B2/B4/B5/B8 CDMA2000 EVDO: BC0 TD-SCDMA: A/F

• 4G:B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B28A/B28B/B34/B38/B39/B40/B41

Physical Characteristics

• Dimensions 164.2 x 80.0 x 24.3 mm / 6.46 x 3.15 x 0.96 in.
• Weight 654 g / 23.07 oz.
• Display 5.2” IPS LTPS 1920 x 1080
• Touch Panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
• Power Li-ion, rechargeable, 8000 mAh
  • Standby: over 500 hours Continuous use: over 12 hours (depending on user environment)
  • Charging time: 3-4 hours (with standard adaptor and USB cable)
• Expansion Slot 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
• Interfaces USB 2.0 Type-C, OTG, Type-C headphones supported
• Sensors Light sensor, proximity sensor, gravity sensor
• Notification Sound, LED indicator
• Audio 1 microphone; 1 speaker; receiver
• Keypad 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key

UHF

• Engine CM710-1 module based on Impinj E710
• Frequency 865-868 MHz / 920-925 MHz / 902-928 MHz
• Impinj Gen2X Supported
• Protocol EPC C1 GEN2 / ISO18000-6C
• Antenna Circular Polarized Antenna (4dBi)
• Power
  • 1W (30dBm, +5 dBm to +30 dBm adjustable)
  • 2W Optional (33dBm, for Latin America, etc.)
• Max Read Range
  • 26m (Impinj MR6 tag, size 70 x 15mm)
  • 28m (Impinj M750 tag, size 70 x 15mm)
  • 30m (Alien H3 Anti-Metal tag, size 130 x 42mm)
• Fastest Read Rate 1300+ tags/sec (circular polarization)

Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.

NFC (Optional)

• Frequency 13.56 MHz
• Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
• Chips M1 card (S50, S70), CPU card, NFC tags, etc.
• Range 2-4 cm

Developing Environment

• SDK Chainway Software Development Kit
• Language Java
• Tool Eclipse / Android Studio

User Environment

• Operating Temp. -20 ℃~+50 ℃
• Storage Temp. -40 ℃~+70 ℃
• Humidity 5% RH – 95% RH non condensing
• Drop Specification Multiple 1.5 m / 4.9 ft. drops to the concrete across the operating temperature range
• Tumble Specification 1000 x 0.5 m / 1.64 ft. falls at room temperature
• Sealing IP65 per IEC sealing specifications
• ESD ±15 KV air discharge, ±6 KV conductive discharge

Data Collection

• Camera Rear 13 MP Autofocus with flash

Barcode Scanning (Optional)

• 1D Linear Scanner Honeywell: N4313
• 1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
• 2D Imager Scanner Zebra: SE4710 / SE4750SR / SE4750MR / SE4750DP; Honeywell: N6603; CM60
• 2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.

Accessories

Standard AC Adaptor, USB Cable, etc. Optional Cradle, Holster, etc.
