RFID – NFC JUPITER SEAL

Resistant and versatile indicative seal

Vuoi un prezzo più basso?

RICHIEDI UN PREVENTIVO

Descrizione

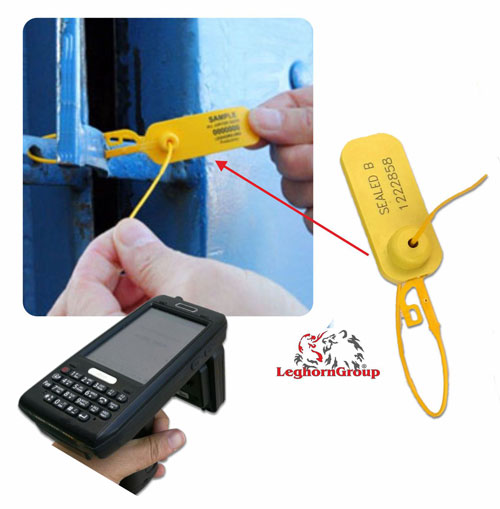

Durable and versatile indicative seal, available in five different tail lengths and three different diameter sizes, making this seal suitable for numerous applications, from transportation, security, industry or postal services.

This adjustable plastic seal makes the application operation quick and safe; integrates a locking mechanism with metal locking to increase the level of protection against tampering attempts.

In addition, it includes an electronic chip for the unique identification of the object to which the seal is applied (contactless and in the absence of line of sight).

Additional information can also be stored in the chip’s user memory, which can be accessed simply by placing a smartphone or NFC tablet nearby.



TECHNICAL DESIGN

rfid plastic seals jupiter seal technical drawing



COLORS & CUSTOMIZATIONS

rfid plastic seals jupiter seal colors customizations



TECHNICAL DATA
RFID inlay model: HF Smart Label
Chip type: Ntag203, Ntag213
Operating frequency: 13.56 MHz – Protocol: ISO 14443A
HF / NFC reading range: approx 5 cm
Operating temperature: -20 ℃ ~ 55 ℃
Warranty: 1 year

Plastic Tag Size: 67mm * 27mm
Seal Tail: Dia. 1.3 / 2.0 / 3.3 mm, Length 175/265/374 mm
Material: Polypropylene
Printing (optional): Laser engraving marking
Barcode (optional): Barcode printing
UID printing (optional): Laser engraving marking
