Sigillo a filo RFID UHF ANCHORFLAG

Plastic flush seal with RFID TAG

Vuoi un prezzo più basso?

RICHIEDI UN PREVENTIVO

Descrizione

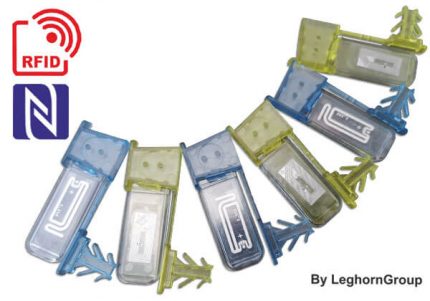

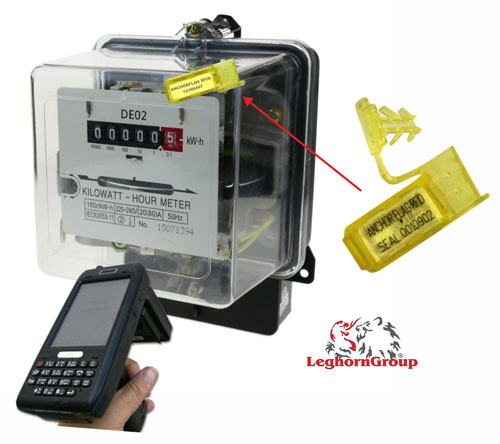

 Fully transparent RFID tag wire seal . The transparent plastic allows control over the locking system.



TECHNICAL DESIGN

rfid wire seals uhf anchorflag technical drawing



UHF: TECHNICAL SPECIFICATIONS
Protocol: EPC Class 1 Gen2 – ISO / IEC 18000 – 6C
Integrated Chip: IMPINJ Monza 3; Read / Write
Memory: EEPROM
Operating frequency: 860 – 960 MHz – UHF Global
Protection degree: IP66
Operating temperature: -20 ° C to 80 ° C
Storage temperature: -20 ° C to 80 ° C
Tag dimensions: 12 × 30 mm
Resistance to critical external agents
Typical reading distance: from 5 to 15 cm (according to the type of reader used)



MATERIAL
Polycarbonate
Polystyrene



COLORS & CUSTOMIZATIONS

rfid wire seals anchorflag colors customizations



NUMBERING AND CUSTOMIZATION
– LASER PRINTING
– Consequential numbering up to 15 digits
– Tag insertion (RFID)
– Customization up to 20 characters on a line
– Customer logo can be made on request
– For special orders it is possible to create the logo in relief



PACKAGING
Carton with 4,000 seals
Carton dimensions: 56 × 24 × 46H cm
Carton weight: 12 kg

Come si usa

A) Insert the wire into the holes in the seal body.
B) Press the anchor tip into the corresponding hole.
C) Press with your fingers until the seal clicks. The clicking noise ensures the seal is closed.
