TITAN SEAL RFID 5×424 mm

Adjustable plastic RFID seal, automatic radio frequency identification. Label size: 72 × 110 mm

Vuoi un prezzo più basso?

RICHIEDI UN PREVENTIVO

Descrizione

RFID seal with unique serial number.
It can be automatically detected, while the goods and / or vehicles (trucks / trailers / containers) pass through an opening , through the use of fixed RFID equipment which thus makes gate in / gate out operations faster, more reliable and safer. (absence of human error).

TITAN SEAL RFID by LEGHORNGROUP (available in HF or UHF operating frequency band ) is an adjustable plastic seal .
The RFID electronic component transforms it into a product that can store a lot of information in addition to the code, useful for purposes of control and optimization of traceability and logistics.

The seal is available in standard or pre-cut version.

The polypropylene plastic housing of the seal – highly resistant in hostile environments and customizable on request with marking and numbering – houses a unique electronic chip , which has its own unique and non-clonable code. This allows for safe and reliable identification of the seal.

This product is ideal for closing large sacks and bags and for tracking goods, but also for sealing truck closures or loading / unloading vents in tanks for the transport of chemical or food products.

  • Adjustable plastic seal for bags but also for trucks , trailers , containers .
  • RFID technology provides automatic identification of the object to which the seal is applied.
  • It can be read quickly and accurately by means of static reading systems such as a gate or by means of portable devices operated by the control personnel.
  • The RFID chip can also be used to store additional information.
  • It can be written easily using standard UHF RFID read / write devices.



TECHNICAL DESIGN

adjustable plastic seals titan seal rfid 424 mm technical drawing



MEASURES
Diam: 5 mm
Length: 424 mm
Label measures: 72 × 110 mm



MATERIAL
In accordance with: Restriction of Hazardous Substances (RoHS) listed in the European.



TECHNICAL SPECIFICATIONS

Radio frequency specifications

UHF model

  • Operating frequency: 860 – 960 MHz – UHF EPC Global
  • Reference RF standard: ISO / IEC 18000-6
  • RF protocol: EPCglobal and ISO / IEC 18000-63 compatible, Gen2V2 compatible
  • Technology: Passive
  • Integrated circuit: IMPINJ Monza 5 Read / Write
  • User writable memory: yes – 32 bit
  • EPC memory: up to 128 bits
  • TID (Tag IDentifier): 48 bits of serialized TID
  • Password protection: yes
  • Tamper function: no
  • Read / Write Cycles: 100,000
  • Data retention: 50 years

Model HF

  • Operating frequency: 13.56 MHz – HF
  • Reference RF standard: ISO / IEC 15693
  • Technology: Passive
  • Integrated circuit: ICode SLI series
  • User-writable memory: up to 2048 bits, Read / Write type
  • UID (Unique IDentifier): 64 bits
  • Tag size: 60 × 60 mm
  • Password protection: yes
  • Tamper function: no
  • Read / Write cycles: 10,000
  • Data retention: 10 years

 Performance

  • UHF – Reading distance with portable terminal: 6 – 8 m
  • HF – Reading distance with portable terminal: 10 – 30 cm
  • Quality: 100% performance verified

MECHANICAL SPECIFICATIONS

  • Industrial protection degree: IP66
  • Operating temperatures: – 20 ° C / 80 ° C
  • Storage temperatures: – 20 ° C / 80 ° C
  • Electronic part dimensions: 72 × 110 mm
  • Total length: 424 mm
  • Useful length: 308 mm
  • Weight: 11 g
  • Material: Plastic housing in copolymer polypropylene.

PET front RFID tag, high tenacity adhesive for special uses.

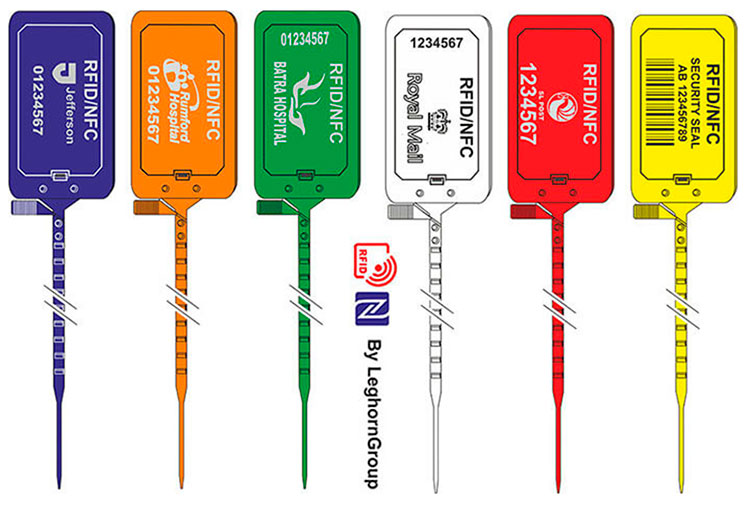

COLORS & CUSTOMIZATIONS

adjustable plastic seals titan seal rfid 424 mm colors customizations



NUMBERING AND CUSTOMIZATION
– Ink transfer printing
– Laser printing
– Consequential numbering up to 15 digits
– Possibility of bar code
– Customization up to 20 characters on a line
– Customer logo can be produced on request
– For special or large quantities it is possible to make the logo in relief



PACKAGING
Carton with 500 seals
Carton dimensions: 56 × 39 × 12 cm
Carton weight: 5 kg
