Sigillo in plastica regolabile ADJUST SEAL RFID – NFC

Descrizione

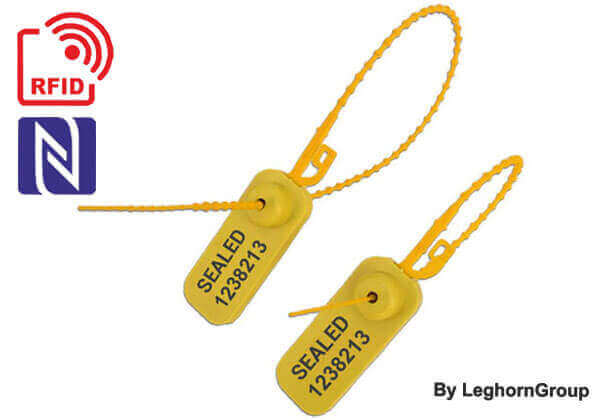

Fast and secure adjustable RFID plastic seal .
An RFID inlay operating in the HF NFC band, Near Field Communication, with an electronic chip with a unique ID code is integrated into this seal.

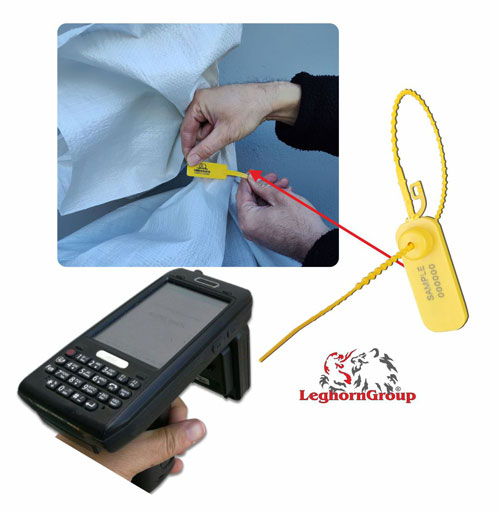

The presence of the chip ensures the possibility of carrying out rapid and reliable identification operations of the object to which the seal is applied (in the absence of contact or line of sight).

Additional information can also be stored in the chip, which can be accessed simply by touching any NFC smartphone or tablet to the seal.



TECHNICAL DESIGN



COLORS & CUSTOMIZATIONS



TECHNICAL DATA
RFID inlay model: HF Smart Label
Chip type: Ntag203, Ntag213
Operating frequency: 13.56 MHz – Protocol: ISO 14443A
HF / NFC reading range: approx 5 cm
Operating temperature: -20 ℃ ~ 55 ℃
Warranty: 1 year

Plastic Tag Size: 30mm * 15mm,
Seal Tail: Dia. 3.3 mm, Length 265/374 mm
Material: Polypropylene
Printing (optional): Laser engraving marking
Barcode (optional): Barcode printing
UID printing (optional): Laser engraving marking
